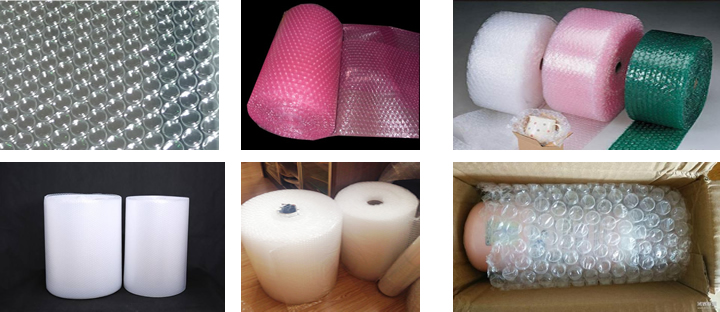

 Polyethylene air-cushion film(also called polyethylene bubble film),which is divide into two kind:ordinary polyethylene air-cushion film and composite polyethylene air-cushion film,is a kind of packing material which has been used at present.Tt not only has good cushioning effect,shock resistance and heat-sealing performance,but also has such advantages as good corrosion resistance and transparency,etc.so it has been widely used for packing.household ware,post parcel,precise instrument,bicycle,polyethylane furniture,etc.

                                            The machine can produce 2 layers of bubble film (flat film + bubble), the extruder is single screw design.
The main raw materials are LDPE and LLDPE particles.


Model Max.Width Screw Diameter Screw L:D   Extruder-Motor Power Speed Power
    型号 最大宽度mm    螺杆直径mm  螺杆长径比 主电机功率kw 速度 m/min  总功率kw
XHPE-1000 1050 Φ65 34:1 18.5 5-20m 48
YHPE-1200 1250 Φ70 34:1 22 5-20m 55
XHPE-1600 1650 Φ75 34:1 30 5-20m 65
XHPE-1800 1850 Φ80 34:1 30 5-20m 70
XHPE-2000 2050 Φ85 34:1 37 5-20m 80
XHPE-2200 2250 Φ90 34:1 37 5-20m 90


+
